Product Information

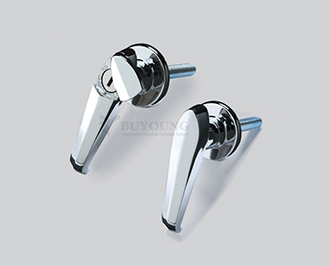

Cabinet door handle used on doors of a cabinet, electrical enclosure or box, or manufacturing equipment and facilities
Product Description
1. Door handle of a cabinet or electrical enclosure
2. Available for both the left and the right side
3. Features a packing on the back side for outstanding waterproofing
4. Smart looking design and excellent product quality
5. Materials: Body - Zinc alloy (ZDC II), Back fixing bracket - Iron
6. Surface treatment: Body - Chrome plating (CR),
Back fixing bracket - Zinc alloy

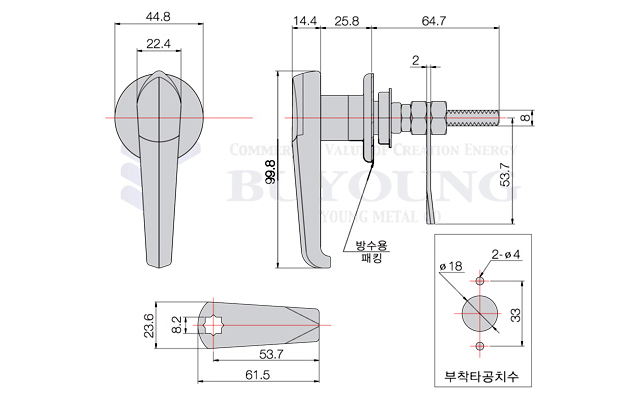

7. Dimensions: 44.8mm * 99.8mm * 104.9mm (width * length)
8. ixing hole dimensions: 25mm * 86mm (width * length * height)
9. Dimensions of hole for attaching : 18mm holes, Distance between
Backthe centers of holes: 33mm
10. Version without a key device: BYS-2
11. Usage: Cabinets, electrical enclosures, panel boards,
control panels, cases, boxes, industrial machinery,
manufacturing equipment and facilities and other various items
